To warrant a sufficient quantity of ice in any given moment, Aristarco offers a wide range of ice storage solutions differing in dimensions and capacity, perfectly compatible with the modular ice makers of all our ranges.

The choice will depend on a number of factors including the dimensions of the ice maker, the production capacity and the daily quantity requirements. The correct storage solution avoids space problems and enables better work efficiency therefore saving time and money. All Aristarco storage bins are made entirely of stainless steel. Their high density polyurethane foam based insulation system, warrants excellent temperature insulation therefore better ice durability. All models are equipped, when required with a top closing panel which is included in the price.

Models ST

SB-F-250-200-150

ST S 150

Dimensions (WxDxH): 568x848x1048 mm
Storage capacity: 130 Kg
Cart capacity: –

Usable with:
SG 300, CQ 150

SB-F-250-200-150

ST S 200

Dimensions (WxDxH): 768x848x1048 mm
Storage capacity: 181 Kg
Cart capacity: –

Usable with:
SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 450

SB-F-250-200-150

ST S 250

Dimensions (WxDxH): 1081x824x968 mm
Storage capacity: 250 Kg
Cart capacity: –

Usable with:
CP 165, CS 140, SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 400, CQ 450

SB-F-400

ST S 400

Dimensions (WxDxH): 1235x873x1270 mm
Storage capacity: 400 Kg
Cart capacity: –

Usable with:
CP 165, CP 300, CS 140, CS 280, SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 400, CQ 450, SPS 250, SPS 600, SPS 1000

SB-D-500

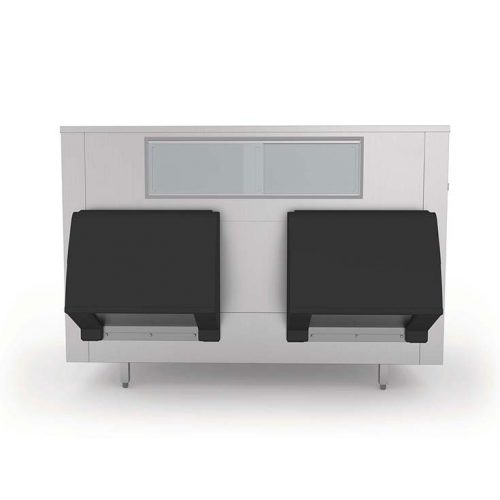

ST SD 600

Dimensions (WxDxH): 1250x1163x1402 mm
Storage capacity: 604 Kg
Cart capacity: –

Usable with:
CP 165, CP 300, CS 140, CS 280, SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 400, CQ 450, SPS 250, SPS 600, SPS 1000

ST-C-50

ST C 50

Dimensions (WxDxH): 788x1016x1195 mm
Storage capacity: 45+109 Kg
1 cart included

Usable with:
CP 165, CS 140, SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 450, SPS 250, SPS 600, SPS 1000

ST-C-50

ST C 300

Dimensions (WxDxH): 788x1219x1905 mm
Storage capacity: 318+109 Kg
1 cart included

Usable with:
CP 165, CS 140, SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 450, SPS 250, SPS 600, SPS 1000

SB-C-1000

ST C 600

Dimensions (WxDxH): 1524x1219x1905 mm
Storage capacity: 602+218 Kg
2 carts included

Usable with:
CP 165, CP 300, CS 140, CS 280, SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 400, CQ 450, SPS 250, SPS 600, SPS 1000, SPS 1500, SPS 3000

SB-C-1000

ST C 1000

Dimensions (WxDxH): 1524x1219x2464 mm
Storage capacity: 968+218 Kg
2 carts included

Usable with:
CP 165, CP 300, CS 140, CS 280, SG 300, SG 600, CQ 150, CQ 250, CQ 320, CQ 400, CQ 450, SPS 250, SPS 600, SPS 1000, SPS 1500, SPS 3000
