Ice

Phoenix

The PHOENIX series solid cube ice makers are made entirely of stainless steel. They are top of the Aristarco range and incorporate all the latest technology to ensure maximum efficiency and enduring performance.

The ice cube is formed by water being sprinkled onto a horizontally mounted copper evaporator which then cools off forming high density, pure, crystal clear, solid ice cubes.

These solid ice cubes end up purer than the water from which they are made and are ideally suitable for keeping drinks cool for an extended time frame without watering them down.

Models Phoenix

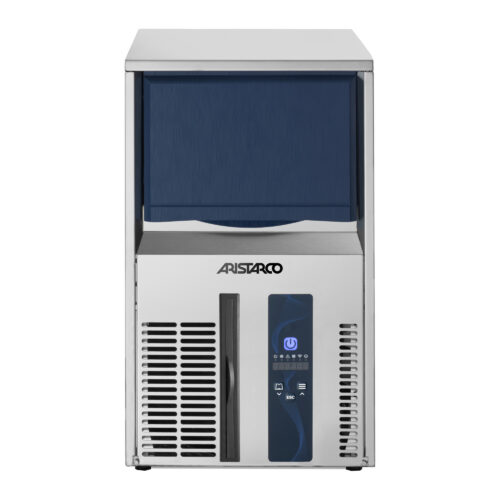

PHE 25.6 M

Dimensions (WxDxH): 365x520x600 mm
24 hr production (21°C – 15°C ): 25 Kg
Storage capacity: 6 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 24
Cooling system: A/W
Gas: R290
Average power consumption: 210 W

Ice cube dimensions (WxDxH):
33x30 mm

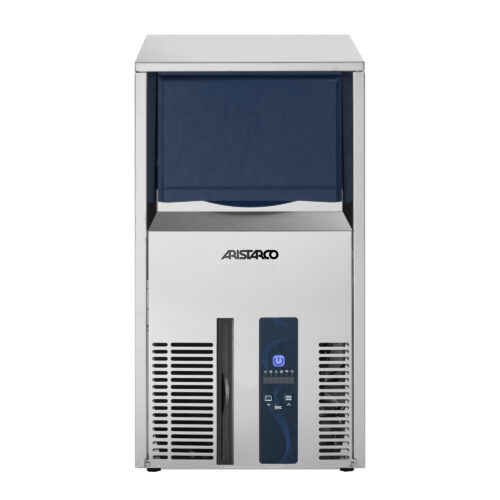

PHE 30.12 M

Dimensions (WxDxH): 390x550x690 mm
24 hr production (21°C – 15°C ): 30 Kg
Storage capacity: 12 Kg
Full ice cube 18 gr
Ice cubes per cycle: 24
Cooling system: A/W
Gas: R290
Average power consumption: 280 W

Ice cube dimensions (WxDxH):
33x30 mm

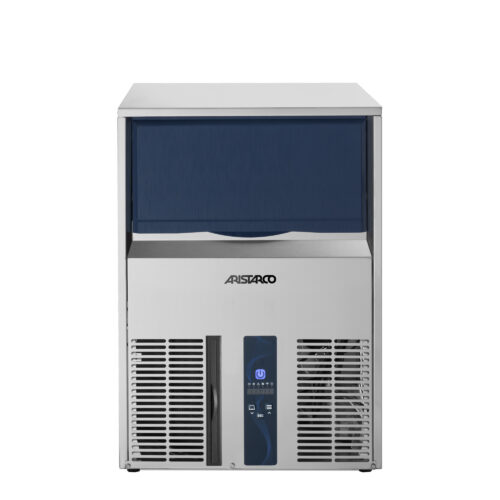

PHE 40.15 M

Dimensions (WxDxH): 500x600x685 mm
24 hr production (21°C – 15°C ): 40 Kg
Storage capacity: 15 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 40
Cooling system: A/W
Gas: R290
Average power consumption: 310 W

Ice cube dimensions (WxDxH):
33x30 mm

PHE 45.15 M

Dimensions (WxDxH): 500x600x685 mm
24 hr production (21°C – 15°C ): 45 Kg
Storage capacity: 15 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 40
Cooling system: A/W
Gas: R290
Average power consumption: 460 W

Ice cube dimensions (WxDxH):
33x30 mm

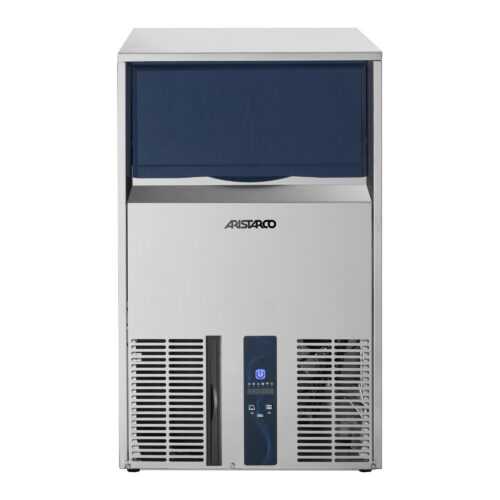

PHE 50.25 M

Dimensions (WxDxH): 500x600x795 mm
24 hr production (21°C – 15°C ): 50 Kg
Storage capacity: 25 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 40
Cooling system: A/W
Gas: R290
Average power consumption: 470 W

Ice cube dimensions (WxDxH):
33x30 mm

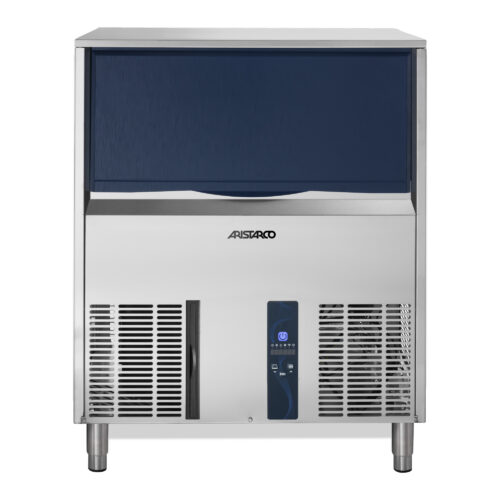

PHE 60.40 M

Dimensions (WxDxH): 736x620x800 mm
24 hr production (21°C – 15°C ): 60 Kg
Storage capacity: 40 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 64
Cooling system: A/W
Gas: R290
Average power consumption: 570 W

Ice cube dimensions (WxDxH):
33x30 mm

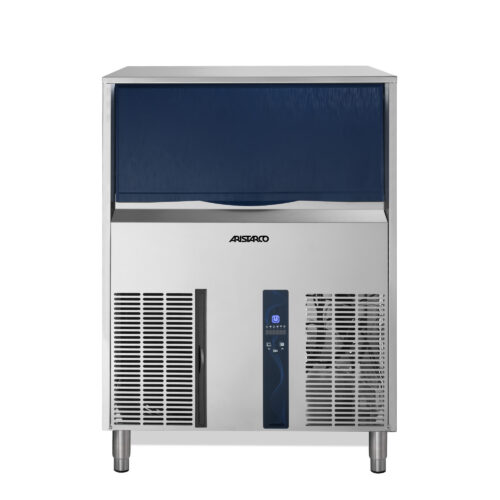

PHE 80.40 M

Dimensions (WxDxH): 736x620x900 mm
24 hr production (21°C – 15°C ): 80 Kg
Storage capacity: 40 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 64
Cooling system: A/W
Gas: R290
Average power consumption: 860 W

Ice cube dimensions (WxDxH):
33x30 mm

PHE 100.5 M

Dimensions (WxDxH): 736x620x985 mm
24 hr production (21°C – 15°C ): 100 Kg
Storage capacity: 55 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 64
Cooling system: A/W
gas: R290
Average power consumption: 1050 W

Ice cube dimensions (WxDxH):
33x30 mm

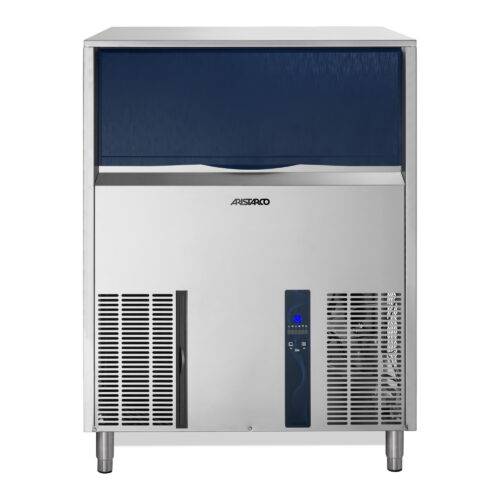

PHE 140.70 M

Dimensions (WxDxH): 840x760x985 mm
24 hr production (21°C – 15°C ): 140 Kg
Storage capacity: 70 Kg
Ice type: Full ice cubes 18 gr
ice cubes per cycle: 108
Cooling system: A/W
gas: R290
Average power consumption: 1100 W

Ice cube dimensions (WxDxH):
33x30 mm

PHE 160.70 M

Dimensions (WxDxH): 840x760x985 mm
24 hr production (21°C – 15°C ): 160 Kg
Storage capacity: 70 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 108
Cooling system: A/W
Gas: R290
Average power consumption: 1340 W

Ice cube dimensions (WxDxH):
33x30 mm

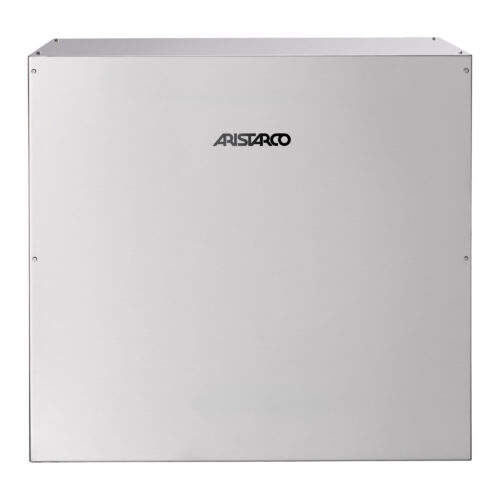

PHE 160 M

Dimensions (WxDxH): 865x530x785 mm
24 hr production (21°C – 15°C ): 160 Kg
Ice type: Full ice cube 18 gr
Ice cubes per cycle: 108
Cooling system: A/W
Gas: R290
Average power consumption: 1340 W

Usable ice bin:
ST S 250, ST S 400

Ice cube dimensions (WxDxH):
33x30 mm

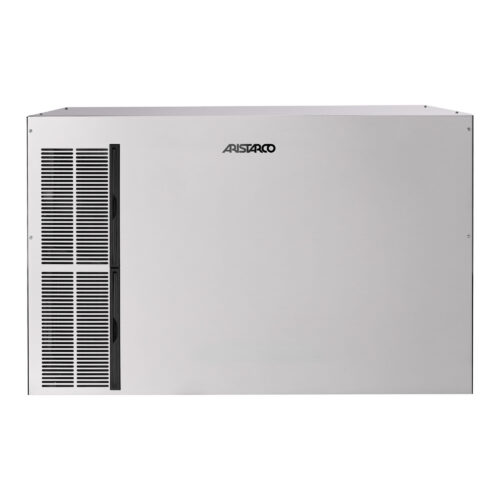

PHE 320 M

Dimensions (WxDxH): 1255x580x790 mm
24 hr production (21°C – 15°C ): 320 Kg
Ice type: Full ice cube 18 gr
ice cubes per cycle: 216
Cooling system: A/W
gas: R290
Average power consumption: 2590 W

Usable ice bin:
ST S 400

Ice cube dimensions (WxDxH):
33x30 mm
Data sheet

PHE 25.6 L

Dimensions (WxDxH):365x520x600 mm
24 hr production (21°C – 15°C ): 25 Kg
Storage capacity: 6 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 18
Cooling system: A/W
Gas: R290
Average power consumption: 210 W

Ice cube dimensions (WxDxH):
42x45 mm

PHE 30.12 L

Dimensions (WxDxH): 390x550x690 mm
24 hr production (21°C – 15°C ): 30 Kg
Storage capacity: 12 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 18
Cooling system: A/W
Gas: R290
Average power consumption: 280 W

36 gr - L42 x A45 mmIce cube dimensions (WxDxH):
42x45 mm

PHE 40.15 L

Dimensions (WxDxH): 500x600x685 mm
24 hr production (21°C – 15°C ): 40 Kg
Storage capacity: 15 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 24
Cooling system: A/W
Gas: R290
Average power consumption: 310 W

Ice cube dimensions (WxDxH):
42x45 mm

PHE 45.15 L

Dimensions (WxDxH): 500x600x685 mm
24 hr production (21°C – 15°C ): 45 Kg
Storage capacity: 15 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 24
Cooling system: A/W
Gas: R290
Average power consumption: 460 W

36 gr - L42 x A45 mm

PHE 50.25 L

Dimensions (WxDxH): 500x600x795 mm
24 hr production (21°C – 15°C ): 50 Kg
Storage capacity: 25 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 24
Cooling system: A/W
Gas: R290
Average power consumption: 470 W

Ice cube dimensions (WxDxH):
42x45 mm

PHE 60.40 L

Dimensions (WxDxH): 736x620x800 mm
24 hr production (21°C – 15°C ): 60 Kg
Storage capacity: 40 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 36
Cooling system: A/W
Gas: R290
Average power consumption: 570 W

Ice cube dimensions (WxDxH):
42x45 mm

PHE 80.40 L

Dimensions (WxDxH): 736x620x900 mm
24 hr production (21°C – 15°C ): 80 Kg
Storage capacity: 40 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 36
Cooling system: A/W
Gas: R290
Average power consumption: 860 W

Ice cube dimensions (WxDxH):
42x45 mm

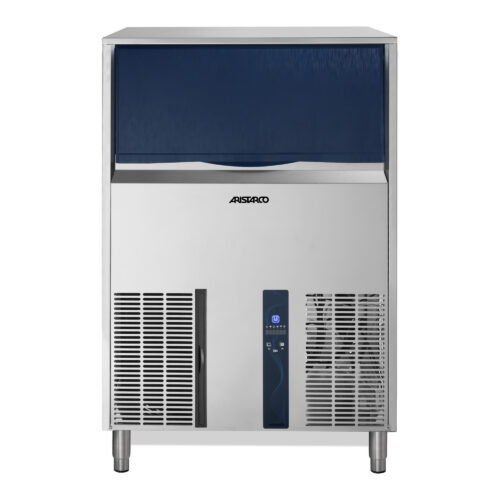

PHE 100.55 L

Dimensions (WxDxH):736x620x985 mm
24 hr production (21°C – 15°C ): 100 Kg
Storage capacity: 55 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 36
Cooling system: A/W
Gas: R290
Average power consumption: 1050 W

Ice cube dimensions (WxDxH):
42x45 mm

PHE 140.70 L

Dimensions (WxDxH): 840x760x985 mm
24 hr production (21°C – 15°C ): 140 Kg
Storage capacity: 70 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 60
Cooling system: A/W
Gas: R290
Average power consumption: 1100 W

Ice cube dimensions (WxDxH):
42x45 mm

PHE 160.70 L

Dimensions (WxDxH): 840x760x985 mm
24 hr production (21°C – 15°C ): 160 Kg
Storage capacity: 70 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 60
Cooling system: A/W
Gas: R290
Average power consumption: 1340 W

Ice cube dimensions (WxDxH):
42x45 mm

PHE 160 L

Dimensions (WxDxH): 865x530x785 mm
24 hr production (21°C – 15°C ): 160 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 60
Cooling system: A/W
Gas: R290
Average power consumption: 1340 W

Usable ice bin:
ST S 250, ST S 400

Ice cube dimensions (WxDxH):
42x45 mm

PHE 320 L

Dimensions (WxDxH): 1255x580x790 mm
24 hr production (21°C – 15°C ): 320 Kg
Ice type: Full ice cube 36 gr
Ice cubes per cycle: 120
Cooling system: A/W
Gas: R290
Average power consumption: 2590 W

Usable ice bin:
ST S 400
