The SPS series of flat flake ice makers, with sub-cooling technology are built entirely of stainless steel. This series is manufactured according to the most advanced technology available and features extreme versatility.

Two versions are available: the classic and the split. In order to obtain flat ice flakes, a stream of water flows onto a fixed vertical evaporator.

This is then sub-cooled freezing the water instantly. At this point the ice is scraped off creating the flakes.

Models SPS

SPS-250-600-1000

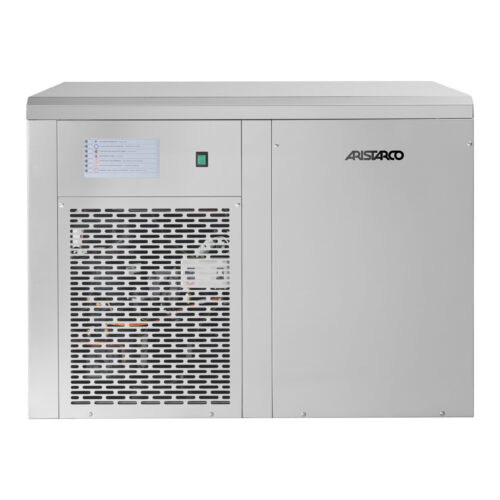

SPS 250

Dimensions (WxDxH): 1015x590x765 mm
24 hr production (21°C – 15°C ): 250 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 1.000 W

Usable ice bin:
ST S 400, ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

SPS-250-600-1000

SPS 600

Dimensions (WxDxH): 1110x640x800 mm
24 hr production (21°C – 15°C ): 600 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 2.600 W

Usable ice bin:
ST S 400, ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

SPS-250-600-1000

SPS 1000

Dimensions (WxDxH): 1110x640x840 mm
24 hr production (21°C – 15°C ): 1.000 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 4.500 W

Usable ice bin:
ST S 400, ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

SPS-3000

SPS 1500

Dimensions (WxDxH): 1380x740x970 mm
24 hr production (21°C – 15°C ): 1.500 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 5.500 W

Usable ice bin:
ST C 600, ST C 1000

SPS-3000

SPS 3000

Dimensions (WxDxH): 1435x1075x1100 mm
24 hr production (21°C – 15°C ): 3.000 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 11.200 W

Usable ice bin:
ST C 600, ST C 1000

SPS-600-1000-split

SPS 600 Split

Dimensions (WxDxH): 600x640x845 mm
24 hr production (21°C – 15°C ): 600 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 580 W

Usable ice bin:
ST S 400, ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

SPS-600-1000-split

SPS 1000 Split

Dimensions (WxDxH): 600x640x845 mm
24 hr production (21°C – 15°C ): 1.000 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 580 W

Usable ice bin:
ST S 400, ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

SPS-1500-3000-split

SPS 1500 Split

Dimensions (WxDxH): 600x640x970 mm
24 hr production (21°C – 15°C ): 1.500 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 580 W

Usable ice bin:
ST S 400, ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

SPS-1500-3000-split

SPS 3000 Split

Dimensions (WxDxH): 993x952x1100 mm
24 hr production (21°C – 15°C ): 3.000 Kg
Ice type: flat ice flakes
Cooling system: A/W
Total power: 260 W

Usable ice bin:
ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

Technical photos SPS

Stainless steel body
Stainless steel body
Easy maintenance
Easy maintenance
PLC control system
PLC control system
Fixed vertical evaporator
Fixed vertical evaporator
