In evidenza


The AH line includes 12 models ranging from the basic models with net pressure boiler to advanced models equipped with PRS System (Atmospheric boiler + Break tank) and ES System (Energy recovery).

AH line professional dishwashers can be inserted into an actual integrated washing system using inlet and outlet tables guaranteeing an effective and efficient performance.

Perfect for washing plates, cutlery, glasses, cups, trays and other tableware, they can answer all the needs of medium and large-scale catering companies thanks to a usable wash height of up to 42 cm.

Models AH

AH800-ESI_tqc

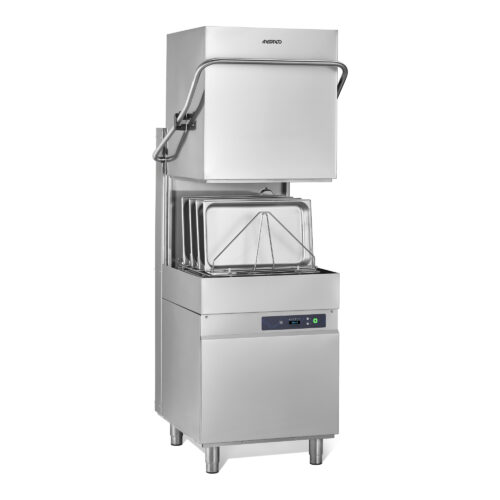

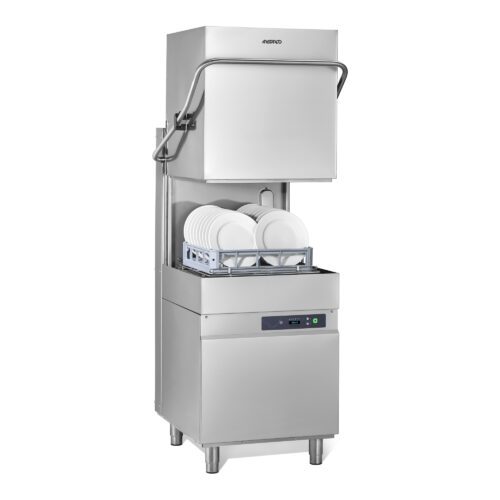

AH 800 ESI

Dimensions (WxDxH): 657/760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 6.750 W

  • Electronic management
  • Multipower technology
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH1240-EPI-WIFI_tqc

AH 1040 EPI

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 7.000 W

  • Electronic management
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH1240-EPI-WIFI_tqc

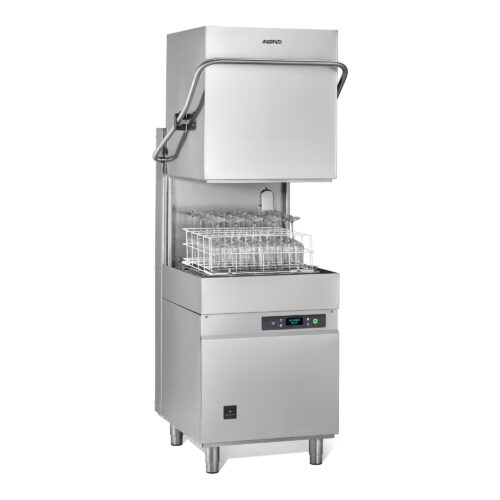

AH 1240 EPI

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH6042-EPI-WIFI_tqc

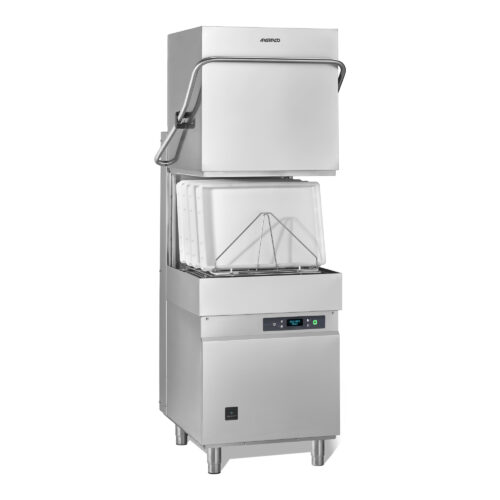

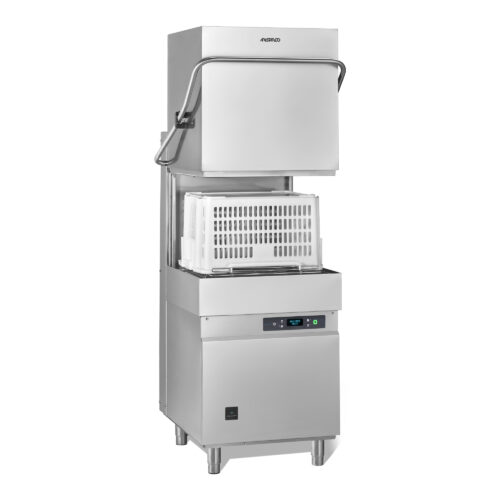

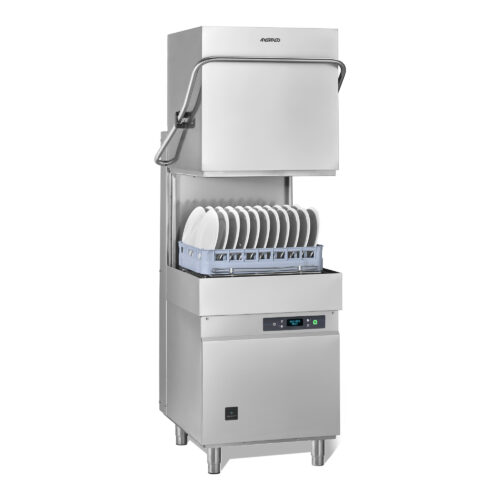

AH 60.42 EPI XL

Dimensions (WxDxH): 681/785x793x1494/1969 mm
Basket sizes: 500×600 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH800-ESI_tqc

AH 800 ESI PRS

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 6.750 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH1240-EPI-WIFI_tqc

AH 1040 EPI PRS

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 -7
Washing cycles: 60″- 120″- 180″ -9′
Total power: 7000 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH1240-EPI-WIFI_tqc

AH 1240 EPI PRS

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH6042-EPI-WIFI_tqc

AH 60.42 EPI XL PRS

Dimensions (WxDxH): 681/785x793x1494/1969 mm
Basket sizes: 500×600 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles:: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH800-ESI-ES_tqc

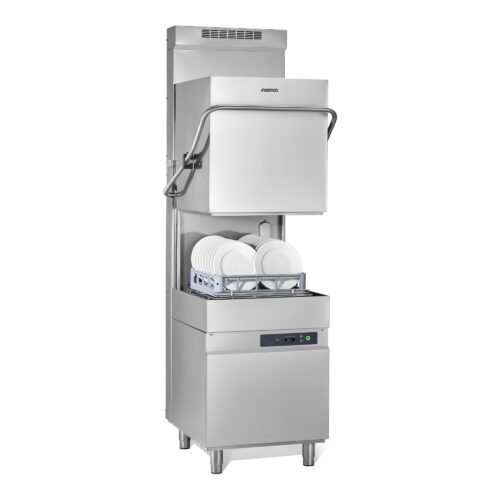

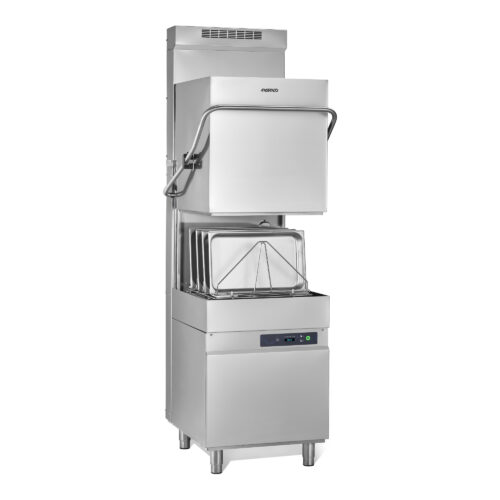

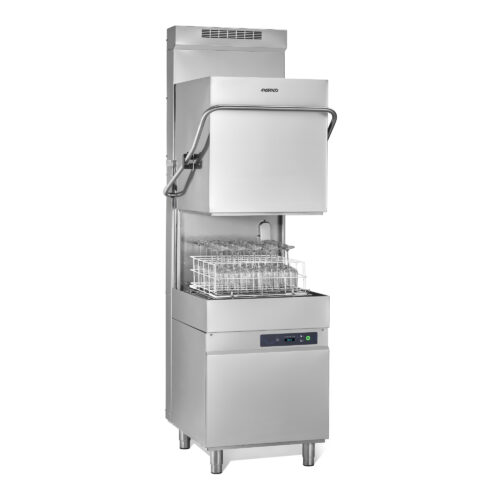

AH 800 ESI ES

Dimensions (WxDxH): 760x793x2254 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 6.750 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH1240-EPI-ES-WIFI_tqc

AH 1040 EPI ES

Dimensions (WxDxH): 760x793x2258 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 7.000 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH1240-EPI-ES-WIFI_tqc

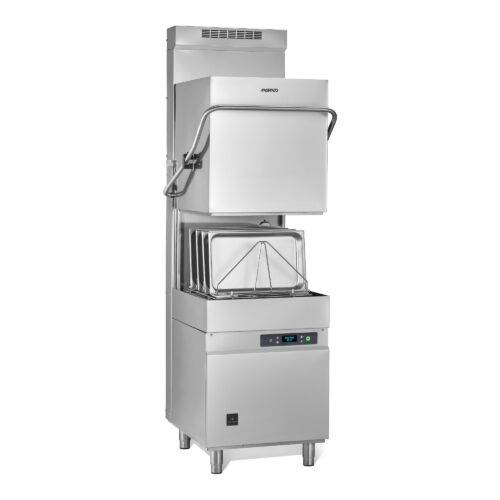

AH 1240 EPI ES

Dimensions (WxDxH): 760x793x2254 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH6042-EPI-ES-WIFI_tqc

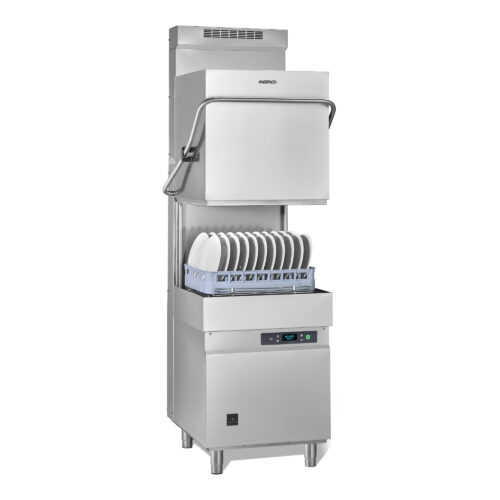

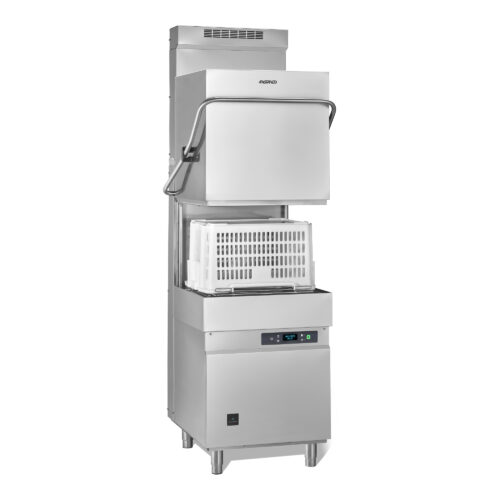

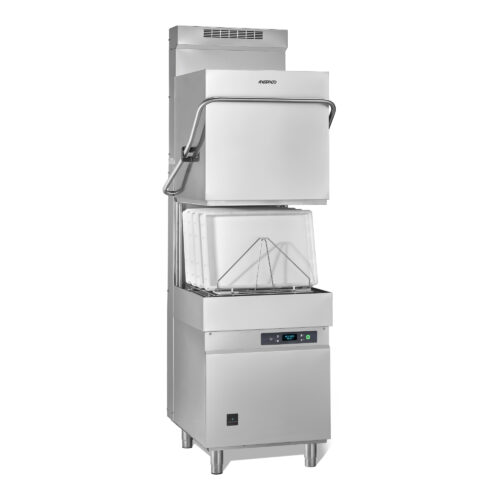

AH 60.42 EPI XL ES

Dimensions (WxDxH): 681/778x793x2254 mm
Basket sizes: 500×600 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump

Technical photos AH

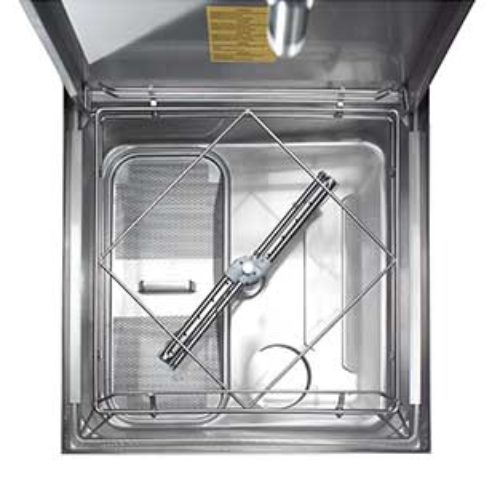

AH 800 internal detail
AH 800 internal detail

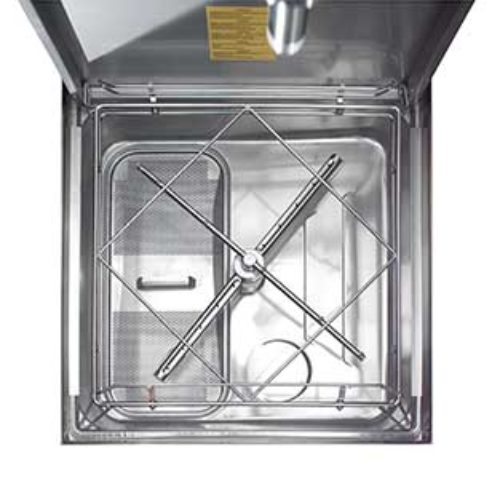

AH 1040 internal detail
AH 1040 internal detail

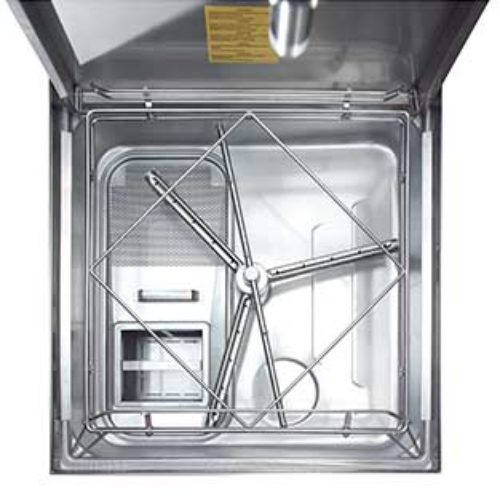

AH 1240 internal detail
AH 1240 internal detail
AH-dettaglio3-interno
AH-dettaglio3-interno
