The AF range consists of appliances entirely made of stainless steel with a partial double skinned body which grants a reduction of thermal dispersion of 20%.

The range includes both entry-level versions with electromechanical controls and electronic versions with multifunction panels to visualise the different dishwasher working stages.

Trays, pizza plates and tall glasses can be easily washed thanks to a usable wash height up to 35 cm.

Models AF

AF-35-25

AF 35.25

Dimensions (WxDxH): 440x497x640 mm
Basket sizes: 350×350 mm
Racks/hour: 30
Washing cycles: 120″
Total power: 2.890 W

  • Electromechanical controls
  • Single skinned body
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-38-25

AF 38.25

Dimensions (WxDxH): 440x497x640 mm
Basket sizes: 380×380 mm
Racks/hour: 30
Washing cycles: 120″
Total power: 2.890 W

  • Electromechanical controls
  • Single skinned body
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-40-30

AF 40.30

Dimensions (WxDxH): 455x550x700 mm
Basket sizes: 400×400 mm
Racks/hour: 30
Washing cycles: 120″
Total power: 2.890 W

  • Electromechanical controls
  • Partial double skinned body
  • Preformed rack guides
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-40-30

AF 40.30 LS

Dimensions (WxDxH): 455x550x700 mm
Basket sizes: 400×400 mm
Racks/hour: 30
Washing cycles: 120″
Total power: 3.030 W

  • Electromechanical controls
  • Partial double skinned body
  • Preformed rack guides
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-45-30

AF 45.30

Dimensions (WxDxH): 503x571x760 mm
Basket sizes: 450×450 mm
Racks/hour: 30
Washing cycles: 120″
Total power: 3.250 W

  • Electromechanical controls
  • Partial double skinned body
  • Preformed rack guides
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-50-35

AF 50.35 M

Dimensions (WxDxH): 572x633x814 mm
Basket sizes: 500×500 mm
Racks/hour: 40 – 30
Washing cycles: 90″- 120″
Total power: 3.250 W

  • Electromechanical controls
  • Partial double skinned body
  • Preformed rack guides
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-50-35

AF 50.35

Dimensions (WxDxH): 572x633x814 mm
Basket sizes: 500×500 mm
Racks/hour: 40 – 30
Washing cycles: 90″- 120″
Total power: 5.050 W

  • Electromechanical controls
  • Partial double skinned body
  • Preformed rack guides
  • Multipower tecnology
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-35-25E

AF 35.25E

Dimensions (WxDxH): 440x497x640 mm
Basket sizes: 350×350 mm
Racks/hour: 40 – 30 – 20 -7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 2.890 W

  • Electronic management
  • Single skinned body
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-38-25E

AF 38.25E

Dimensions (WxDxH): 440x497x640 mm
Basket sizes: 380×380 mm
Racks/hour: 40 – 30 – 20 – 7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 2.890 W

  • Electronic management
  • Single skinned body
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-40-30E

AF 40.30E

Dimensions (WxDxH): 455x550x700 mm
Basket sizes: 400×400 mm
Racks/hour: 40 – 30 – 20 – 7
Washing cycle: 2.890 W

  • Electronic management
  • Partial double skinned body
  • Preformed rack guides
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-40-30E

AF 40.30E LS

Dimensions (WxDxH): 455x550x700 mm
Basket sizes: 400×400 mm
Racks/hour: 40 – 30 – 20 -7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 3.030 W

  • Electronic management
  • Partial double skinned body
  • Preformed rack guides
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-45-30E

AF 45.30E

Dimensions (WxDxH): 503x571x760 mm
Basket sizes: 450×450 mm
Racks/hour: 40 – 30 – 20 -7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 3.250 W

  • Electronic management
  • Partial double skinned body
  • Preformed rack guides
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-50-35E

AF 50.35E M

Dimensions (WxDxH): 572x633x814 mm
Basket sizes: 500×500 mm
Racks/hour: 40 – 30 – 20 – 7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 3.250 W

  • Electronic management
  • Partial double skinned body
  • Preformed rack guides
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-50-35E

AF 50.35E

Dimensions (WxDxH): 572x633x814 mm
Basket sizes: 500×500 mm
Racks/hour: 40 – 30 – 20 – 7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 5.050 W

  • Electronic management
  • Partial double skinned body
  • Preformed rack guides
  • Multipower tecnology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-40-30E

AF 40.30E LS PRS

Dimensions (WxDxH): 455x550x700 mm
Basket sizes: 400×400 mm
Racks/hour: 40 – 30 – 20 -7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 3.030 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Partial double skinned body
  • Preformed rack guides
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-45-30E

AF 45.30E PRS

Dimensions (WxDxH): 503x571x760 mm
Basket sizes: 450×450 mm
Racks/hour: 40 – 30 – 20 -7
Washing cycles: 90″- 120″- 180″- 9′
Total power: 6.550 W



  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Partial double skinned body
  • Preformed rack guides
  • Multipower tecnology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms
AF-50-35E

AF 50.35E PRS

Dimensions (WxDxH): 572x633x814 mm
Basket sizes: 500×500 mm
Racks/hour: 40 – 30 – 20 -7
Washing cycles: 90″- 120″- 180″- 9′
Potenza totale: 6.550 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Partial double skinned body
  • Preformed rack guides
  • Multipower tecnology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Stainless steel wash and rinse arms

Technical photos AF

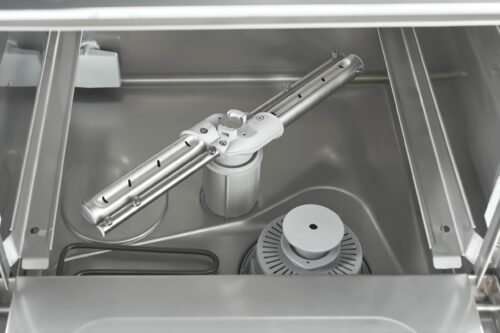

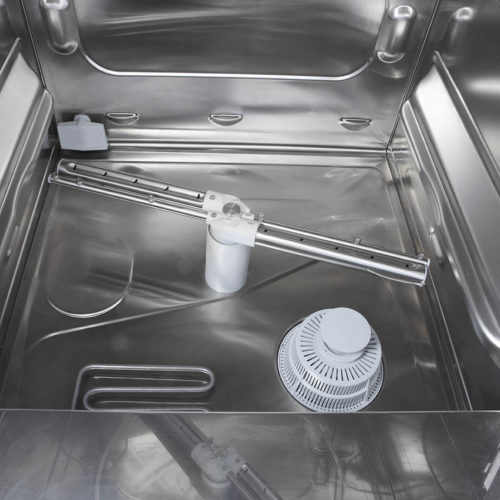

Internal Detail
Internal Detail
Internal detail with surface filters (optional)
Internal detail with surface filters (optional)

Application Areas AF

Bars/Wine bars

Hotels/Restaurants/Pizzerias
