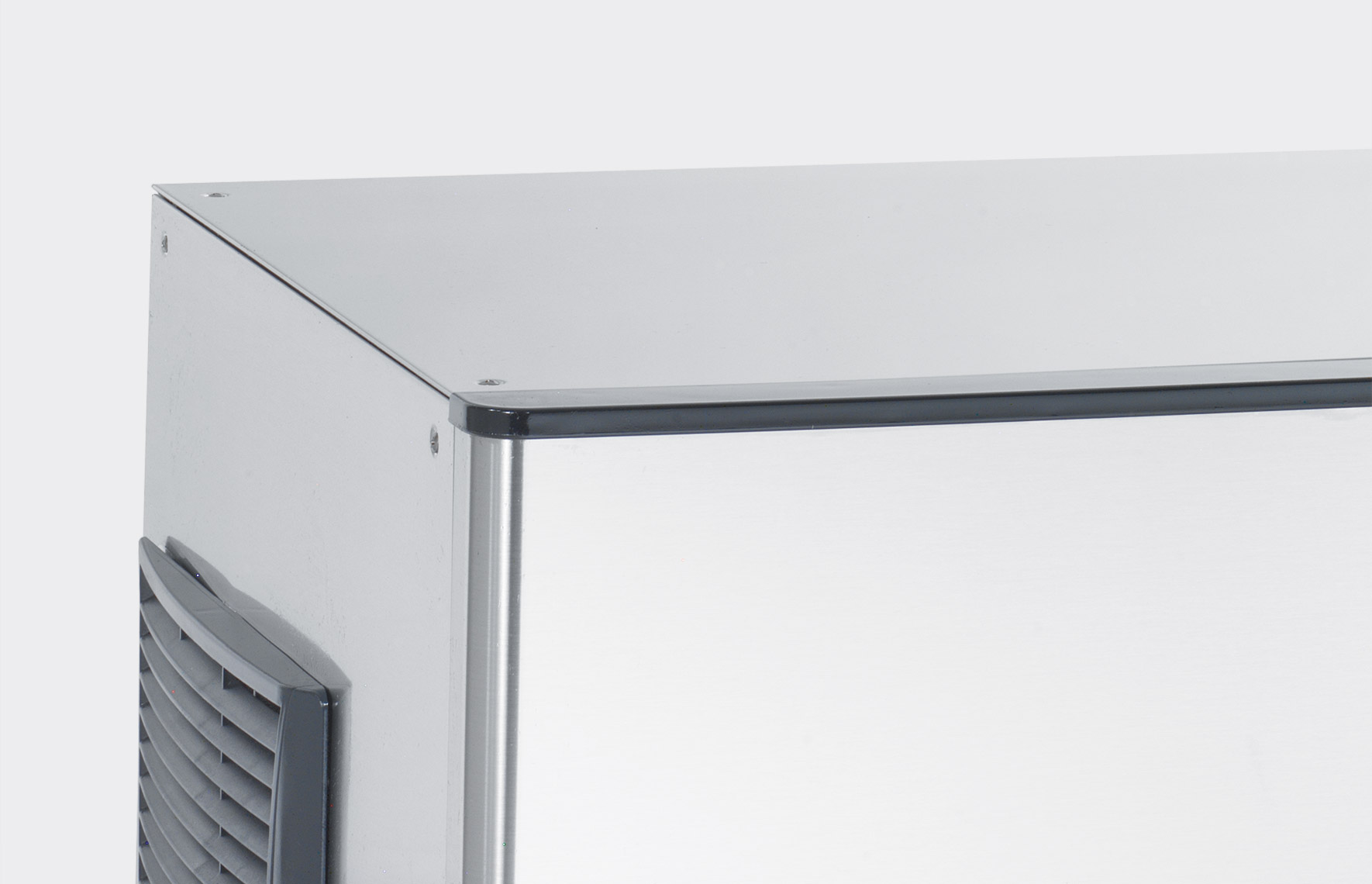

The PICTOR series solid dice ice makers feature a vertically mounted evaporator made entirely of stainless steel and an innovative linear design and extreme reliability.
The ice cubes are produced by means of a uniform and continuous jet of water which flows downwards onto a highly efficient vertical evaporator where it is distributed uniformly.
Dimensions (WxDxH): 560x620x575 mm
24 hr production (21°C – 15°C ): 140 Kg
Ice type: Dice ice 6/10/17 gr
Ice cubes per cycle: 275 (6gr) / 168 (10gr) / 110 (17gr)
Cooling system: A/W
Gas: R290
Average power consumption: 650 W
Usable ice bin:
ST S 150, ST S 200
Dimensions (WxDxH): 760x620x575 mm
24 hr production (21°C – 15°C ): 220 Kg
Ice type: Dice ice 6/10/17 gr
Ice cubes per cycle: 370 (6gr) / 234 (10gr) / 140 (17gr)
Cooling system: A/W
Gas: R290
Average power consumption: 1.100 W
Usable ice bin:
ST S 200, ST S 250, ST S 400
Dimensions (WxDxH): 760x620x575 mm
24 hr production (21°C – 15°C ): 280 Kg
Ice type: Dice ice 6/10/17 gr
Ice cubes per cycle: 370 (6gr) / 234 (10gr) / 140 (17gr)
Cooling system: A/W
Gas: R290
Average power consumption: 1.250 W
Usable ice bin:
ST S 200, ST S 250, ST S 400
Dimensions (WxDxH): 760x620x725 mm
24 hr production (21°C – 15°C ): 380 Kg
Ice type: Dice ice 6/10/17 gr
Ice cubes per cycle: 555 (6gr) / 342 (10gr) / 210 (17gr)
Cooling system: A/W
Gas: R290
Average power consumption: 1.620 W
Usable ice bin:
ST S 200, ST S 250, ST S 400
